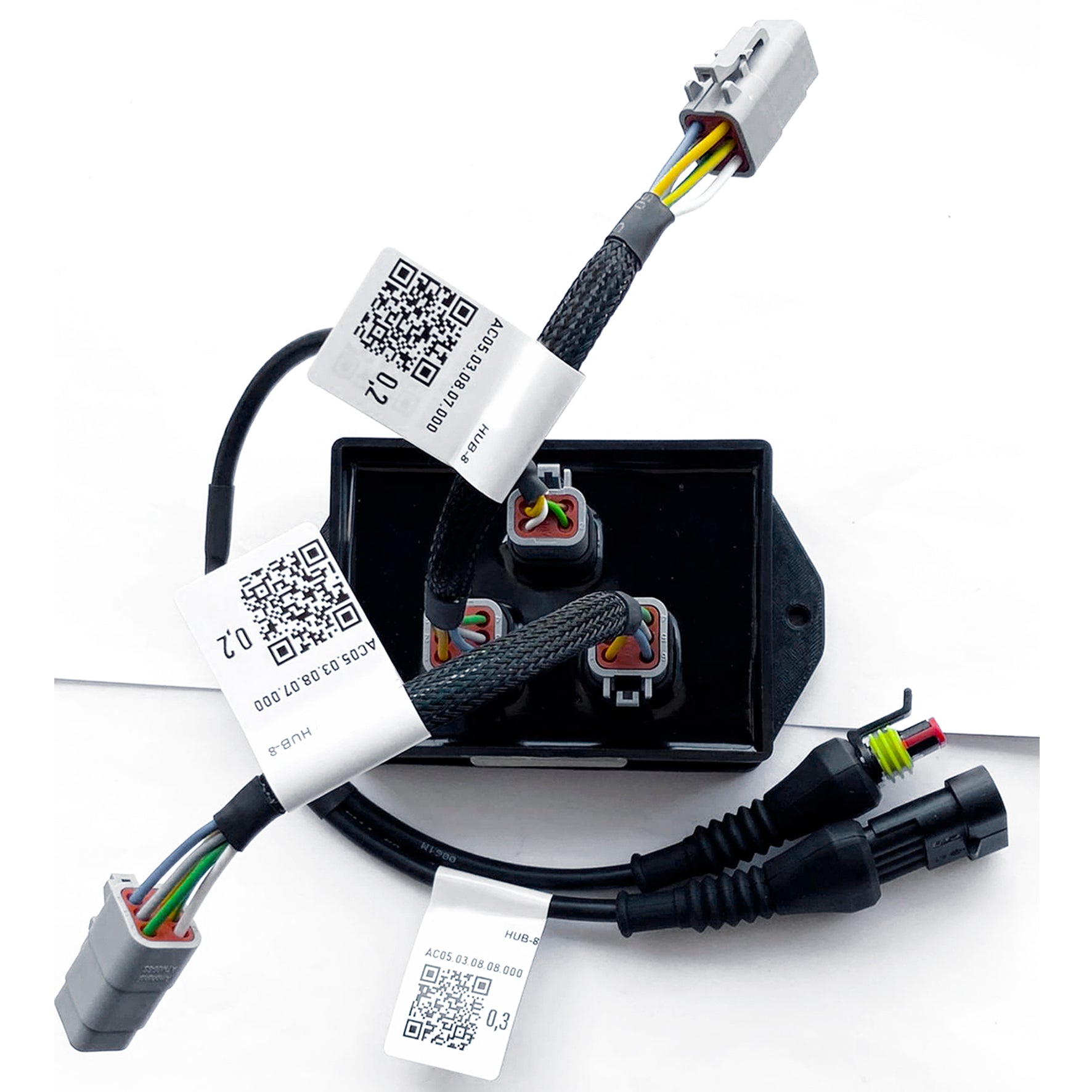

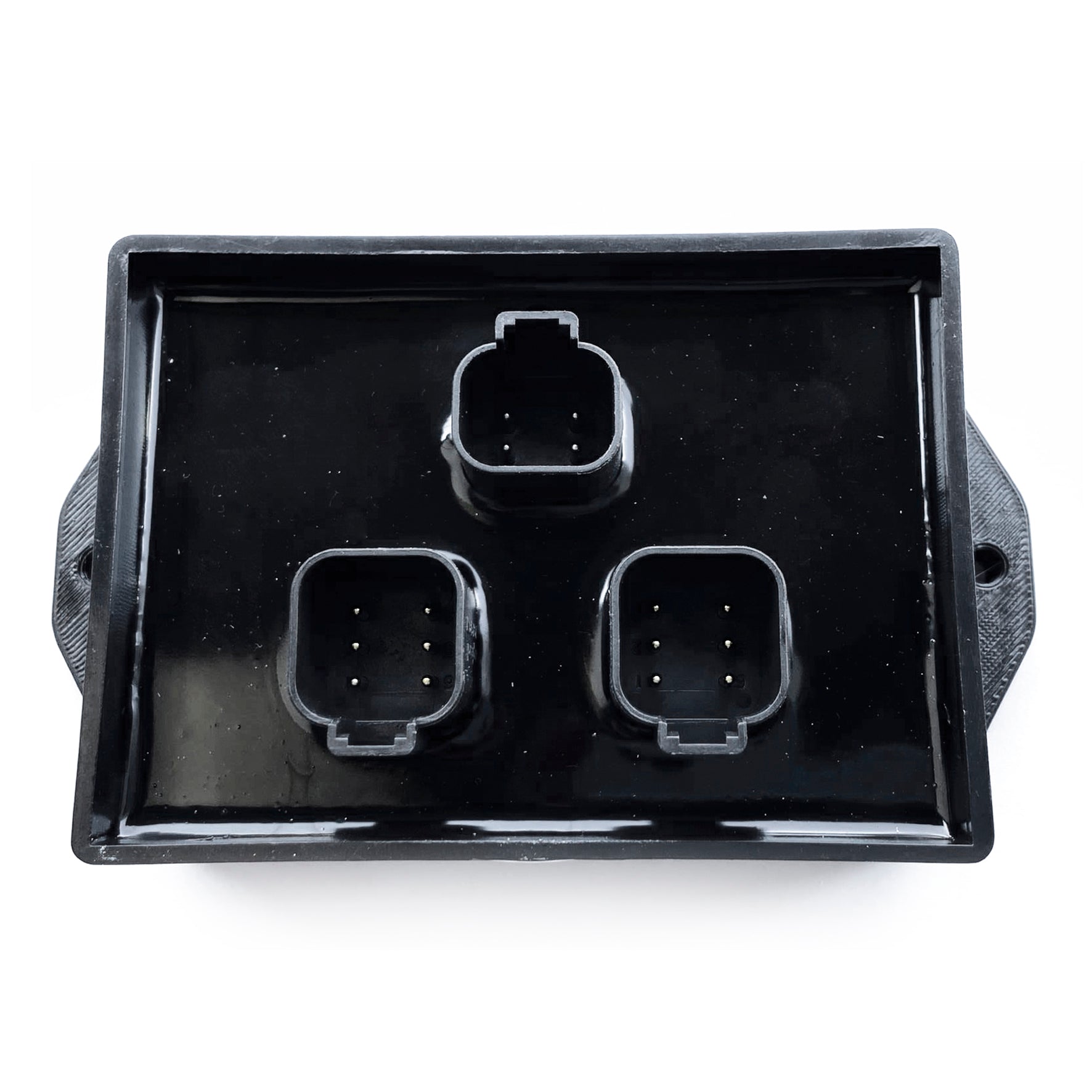

HUB8 – 8-Channel Seed Drill Sensor I/O Module

Extends the Hectare seed drill monitoring system with multi-sensor connectivity.

The HUB8 is a microprocessor-based 8-channel I/O module designed to expand the functionality of the Hectare monitoring system. It enables effortless connection of up to eight different sensors, including rotation, hopper level, position, marker, and other contact or open-collector sensors. By configuring sensor profiles in the Hectare monitor, the HUB8 supports functions such as frequency measurement, seed level monitoring, and rotation speed detection.

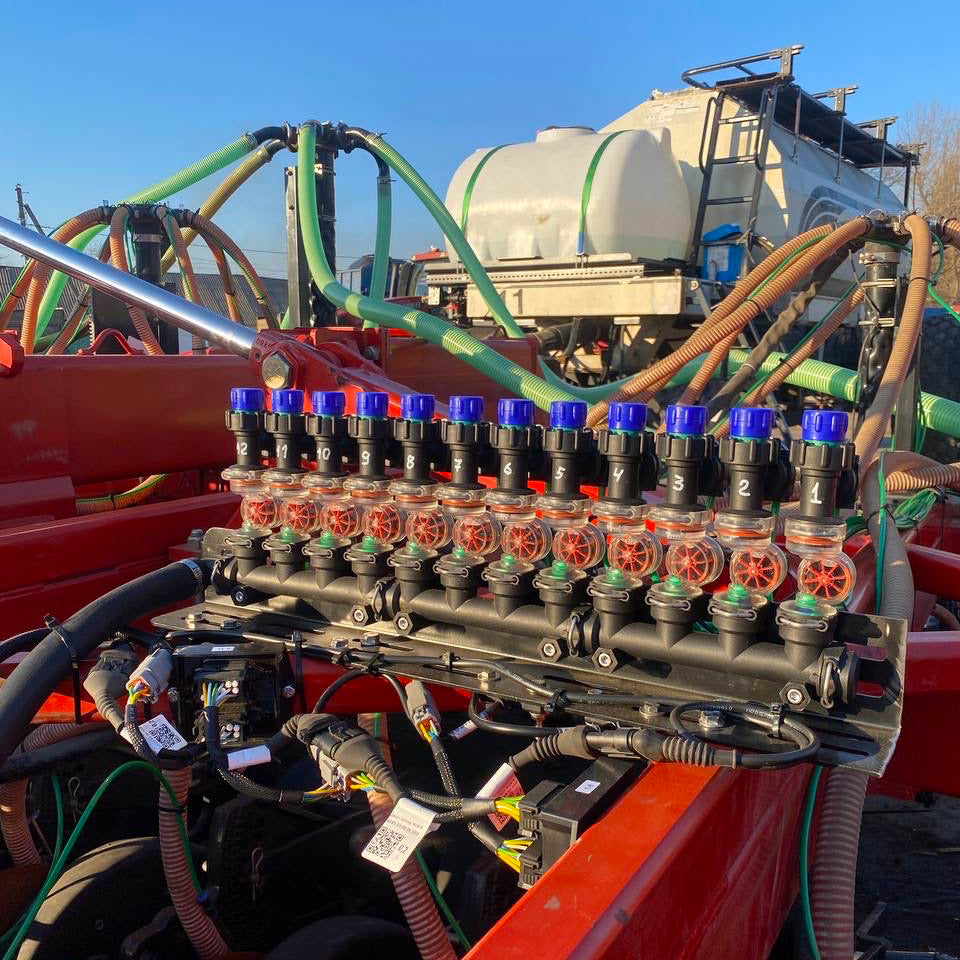

A common use case is connecting Wilger liquid fertilizer flow meters, ensuring precise flow control and reliable monitoring in seeding applications.

Key Features:

• 8 independent sensor input channels
• Supports contact and open-collector sensors
• Frequency measurement for rotation and flow monitoring
• Compatible with Wilger liquid fertilizer flow meters
• Flexible sensor profiles configured via Hectare monitor
• Enables hopper level, marker position, and other key functions
• Compact, robust design for agricultural machinery


Compatibility:

• Fully compatible with Hectare range seed drill monitor
• Designed for seamless integration into seed drill control systems


Applications:

• Seed drill monitoring and control
• Rotation and speed measurement
• Hopper seed level detection
• Marker position control
• Flow monitoring with Wilger liquid fertilizer meters
• Custom sensor integration
