Seeding control system for Gaspardo MTR (MT)
Seeding control system for Gaspardo MTR (MT)
SKU:AC00.01.08.02.000
Price excl. VAT
Kit contents for this configuration
- 1 × Hectare mini display
- 4 × Agriwelt Pro seed sensor for Gaspardo MTR / MT
- 1 × CAN Terminator
- 2 × Communication cable for seed control system — 4 m (0.75)
- 2 × Sensor extension cable for seed control systems — 4 m (0.5)
- 1 × Power supply cable Hectare
- 1 × Inductive sensor 18 mm
- 1 × Angle bracket for 18 mm inductive rotation sensor
- 1 × Rotation shunt star wheel for 17–18 mm square shaft (split, 6 teeth)
- 1 × Hectare 5 display
- 4 × Agriwelt Pro seed sensor for Gaspardo MTR / MT
- 1 × CAN Terminator
- 2 × Communication cable for seed control system — 4 m (0.75)
- 2 × Sensor extension cable for seed control systems — 4 m (0.5)
- 1 × Power supply cable Hectare
- 1 × Inductive sensor 18 mm
- 1 × Angle bracket for 18 mm inductive rotation sensor
- 1 × Rotation shunt star wheel for 17–18 mm square shaft (split, 6 teeth)
- 1 × Hectare mini display
- 6 × Agriwelt Pro seed sensor for Gaspardo MTR / MT
- 1 × CAN Terminator
- 2 × Communication cable for seed control system — 4 m (0.75)
- 2 × Sensor extension cable for seed control systems — 4 m (0.5)
- 1 × Power supply cable Hectare
- 1 × Inductive sensor 18 mm
- 1 × Angle bracket for 18 mm inductive rotation sensor
- 1 × Rotation shunt star wheel for 17–18 mm square shaft (split, 6 teeth)
- 1 × Hectare 5 display
- 6 × Agriwelt Pro seed sensor for Gaspardo MTR / MT
- 1 × CAN Terminator
- 2 × Communication cable for seed control system — 4 m (0.75)
- 2 × Sensor extension cable for seed control systems — 4 m (0.5)
- 1 × Power supply cable Hectare
- 1 × Inductive sensor 18 mm
- 1 × Angle bracket for 18 mm inductive rotation sensor
- 1 × Rotation shunt star wheel for 17–18 mm square shaft (split, 6 teeth)
- 1 × Hectare mini display
- 8 × Agriwelt Pro seed sensor for Gaspardo MTR / MT
- 1 × CAN Terminator
- 2 × Communication cable for seed control system — 4 m (0.75)
- 2 × Sensor extension cable for seed control systems — 4 m (0.5)
- 1 × Power supply cable Hectare
- 1 × Inductive sensor 18 mm
- 1 × Angle bracket for 18 mm inductive rotation sensor
- 1 × Rotation shunt star wheel for 17–18 mm square shaft (split, 6 teeth)
- 1 × Hectare 5 display
- 8 × Agriwelt Pro seed sensor for Gaspardo MTR / MT
- 1 × CAN Terminator
- 2 × Communication cable for seed control system — 4 m (0.75)
- 2 × Sensor extension cable for seed control systems — 4 m (0.5)
- 1 × Power supply cable Hectare
- 1 × Inductive sensor 18 mm
- 1 × Angle bracket for 18 mm inductive rotation sensor
- 1 × Rotation shunt star wheel for 17–18 mm square shaft (split, 6 teeth)
- 1 × Hectare mini display
- 12 × Agriwelt Pro seed sensor for Gaspardo MTR / MT
- 1 × CAN Terminator
- 4 × Communication cable for seed control system — 4 m (0.75)
- 2 × Sensor extension cable for seed control systems — 4 m (0.5)
- 1 × Power supply cable Hectare
- 1 × Inductive sensor 18 mm
- 1 × Angle bracket for 18 mm inductive rotation sensor
- 1 × Rotation shunt star wheel for 17–18 mm square shaft (split, 6 teeth)
- 1 × Hectare 5 display
- 12 × Agriwelt Pro seed sensor for Gaspardo MTR / MT
- 1 × CAN Terminator
- 4 × Communication cable for seed control system — 4 m (0.75)
- 2 × Sensor extension cable for seed control systems — 4 m (0.5)
- 1 × Power supply cable Hectare
- 1 × Inductive sensor 18 mm
- 1 × Angle bracket for 18 mm inductive rotation sensor
- 1 × Rotation shunt star wheel for 17–18 mm square shaft (split, 6 teeth)
- 1 × Hectare mini display
- 16 × Agriwelt Pro seed sensor for Gaspardo MTR / MT
- 1 × CAN Terminator
- 4 × Communication cable for seed control system — 4 m (0.75)
- 2 × Sensor extension cable for seed control systems — 4 m (0.5)
- 1 × Power supply cable Hectare
- 1 × Inductive sensor 18 mm
- 1 × Angle bracket for 18 mm inductive rotation sensor
- 1 × Rotation shunt star wheel for 17–18 mm square shaft (split, 6 teeth)
- 1 × Hectare 5 display
- 16 × Agriwelt Pro seed sensor for Gaspardo MTR / MT
- 1 × CAN Terminator
- 4 × Communication cable for seed control system — 4 m (0.75)
- 2 × Sensor extension cable for seed control systems — 4 m (0.5)
- 1 × Power supply cable Hectare
- 1 × Inductive sensor 18 mm
- 1 × Angle bracket for 18 mm inductive rotation sensor
- 1 × Rotation shunt star wheel for 17–18 mm square shaft (split, 6 teeth)
We know seeding systems. Compatibility with your machine is confirmed individually.
This kit and its price are based on our engineers’ experience. Seeding equipment varies from one model year to another and according to each manufacturer’s design decisions. To ensure the correct configuration, please consult our engineer before placing your final order — photographs of your equipment may be requested.
Couldn't load pickup availability
Row-by-row seed monitoring for Gaspardo MTR / MT precision planters — and for planters with the same seed units: Özdöken, Agromaster, Anil Tarim, Elmek and others.
Each row gets an Agriwelt Pro optical seed sensor that mounts in the standard sensor position of the MTR seed unit. The sensor counts every seed, and the Hectare display shows for each row: seed count and rate, skips and doubles, spacing uniformity and overall seeding quality — with an alarm as soon as a row stops seeding or starts skipping. Problems are noticed in the field, not at emergence.
Why Agriwelt
- We design and manufacture the sensors and the Hectare displays ourselves — one manufacturer, one point of support
- Seed-level data for every row — skips, doubles and spacing uniformity, not just a blockage alarm
- Sensors are daisy-chained along the toolbar — one cable instead of a harness per row, fewer connectors, fewer failure points
- Matched to your planter: sensor fit, shaft-sensor bracket and trigger wheel for your drive shaft — ready for DIY installation
- Standalone: no ISOBUS, no subscription — any tractor with a 3-pin socket

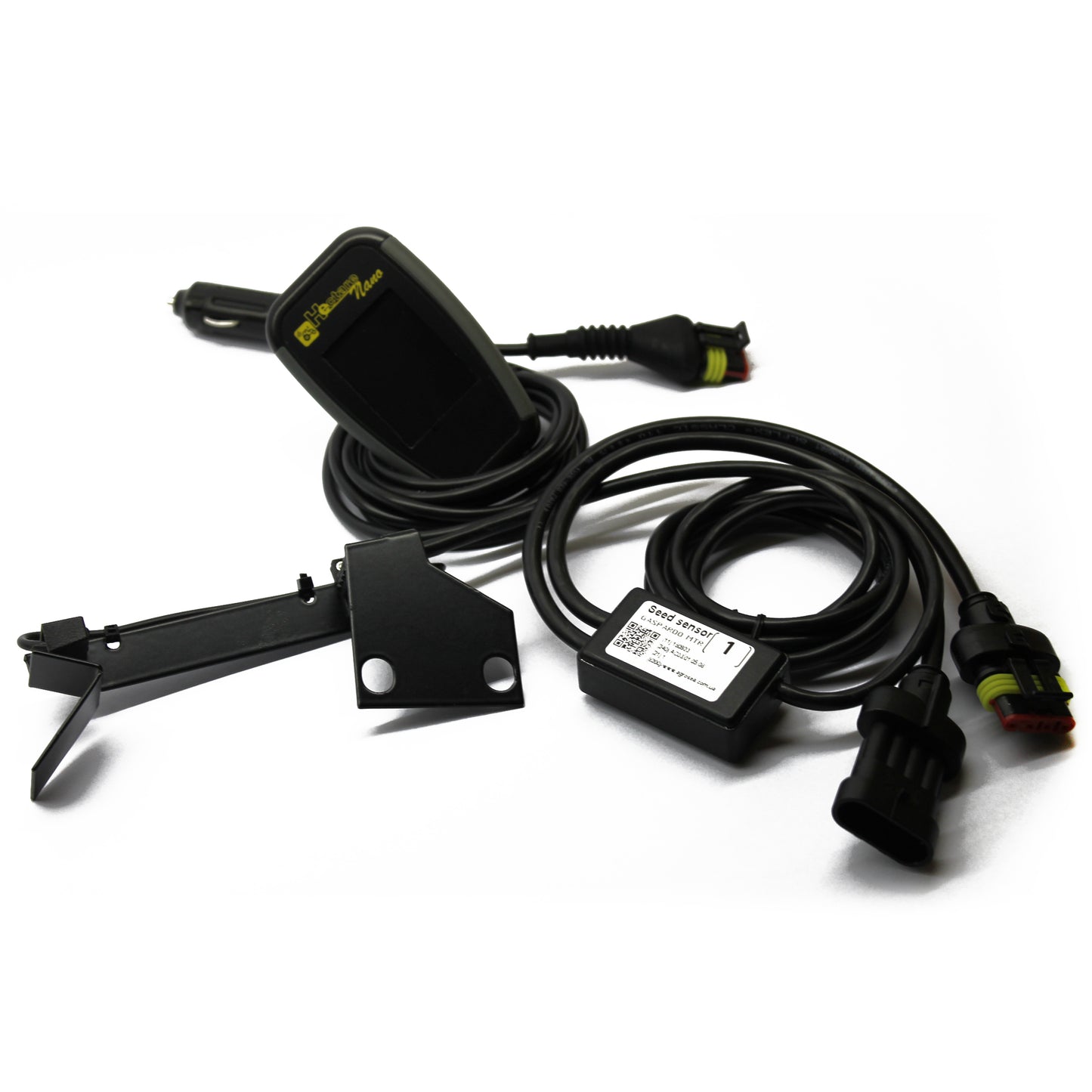

Kit contents
- Agriwelt Pro seed sensor for Gaspardo MTR — one per row

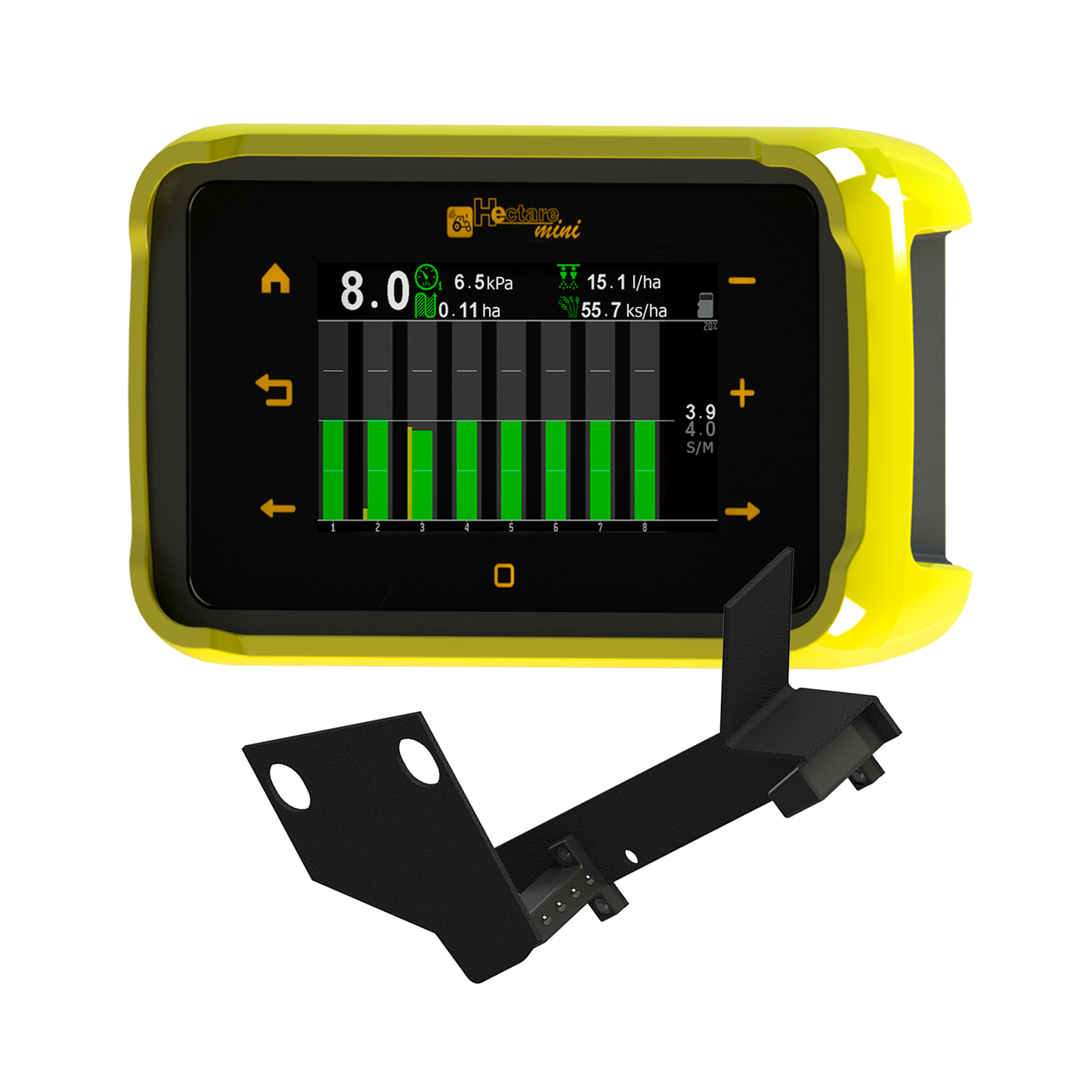

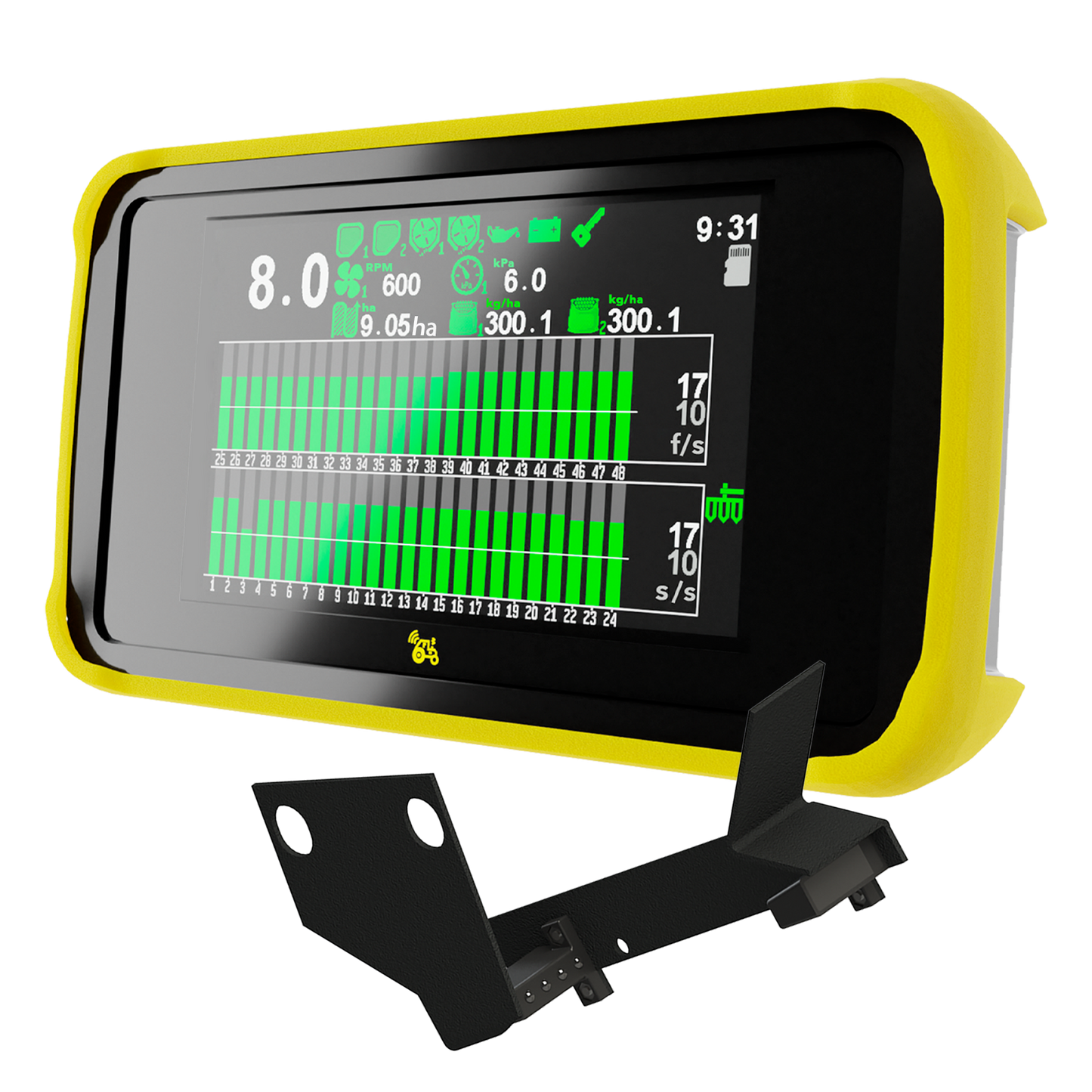

- Display: Hectare mini (2.8″) or Hectare 5 (5″), depending on option
- Power supply cable for the display (3-pin DIN socket)
- Communication cables: 2 × 4 m (4 × 4 m for 12 and 16 rows)
- Sensor extension cables: 2 × 4 m
- Inductive sensor 18 mm with angle bracket and split trigger star wheel for the 17–18 mm square drive shaft
- Terminator
Options
4, 6, 8, 12 or 16 rows; Hectare mini or Hectare 5 display. The price shown is for the complete kit in the selected configuration.
No 3-pin socket on the tractor? Add the battery connection cable.
Warranty 2 years.
*This kit is intended for use with Gaspardo MTR / MT planters and planters with the same seed units. It is not an original product of Gaspardo (Maschio Gaspardo) or the other manufacturers named, and Agriwelt GmbH is not affiliated with that manufacturer. All trademarks are the property of their respective owners and are used solely to identify the machines for which the kit is intended.
Hectare mini in practice
What’s in the box, and what you see and hear while seeding.
The video loads from YouTube only when you click.
Questions
Does the system count seeds?
In precision seeding — single seeds, from rapeseed to maize — the monitor counts the seeds of every row and shows doubles and skips. In dense flow, as with cereals, it shows the relative flow of every row as a bar and gives an alarm when a row falls below its limit; exact seed counting in dense flow is in development. How it works
Can the system also control the seed rate?
Yes. With Agriwelt drive controllers and motors tested by us it controls the rate of up to 4 products, dry or liquid. These components are not part of this kit: Rate Control Kits.
Can other equipment be connected?
The system is complete and standalone; all its components are tested by us for compatibility. Other connections on request.
Is the system already in use on machines like mine?
Systems are in use in Austria, Germany, France and Italy. On request we send you photos of installations on your machine type.
Purchase and service
- Manufacturer
- Agriwelt GmbH, Vienna, Austria. Developed and manufactured in Austria. Legal notice
- Advice
- By phone at +43 664 156 49 10 in German, English and Polish. In writing (WhatsApp, e-mail info@agriwelt.com) in all languages of this website.
- Warranty
- 2-year manufacturer’s warranty. General Terms of Sale
- Return
- If the system agreed with our engineer does not perform its specified functions on your machine, we work with you until it does. If we cannot achieve this, we take it back within 30 days of delivery — also after installation. Return conditions
- Payment
- Private customers: prepayment. Businesses in Austria, Germany and Switzerland: on request by invoice, 14 days net.
Your drill is different? Build your kit in the configurator →
