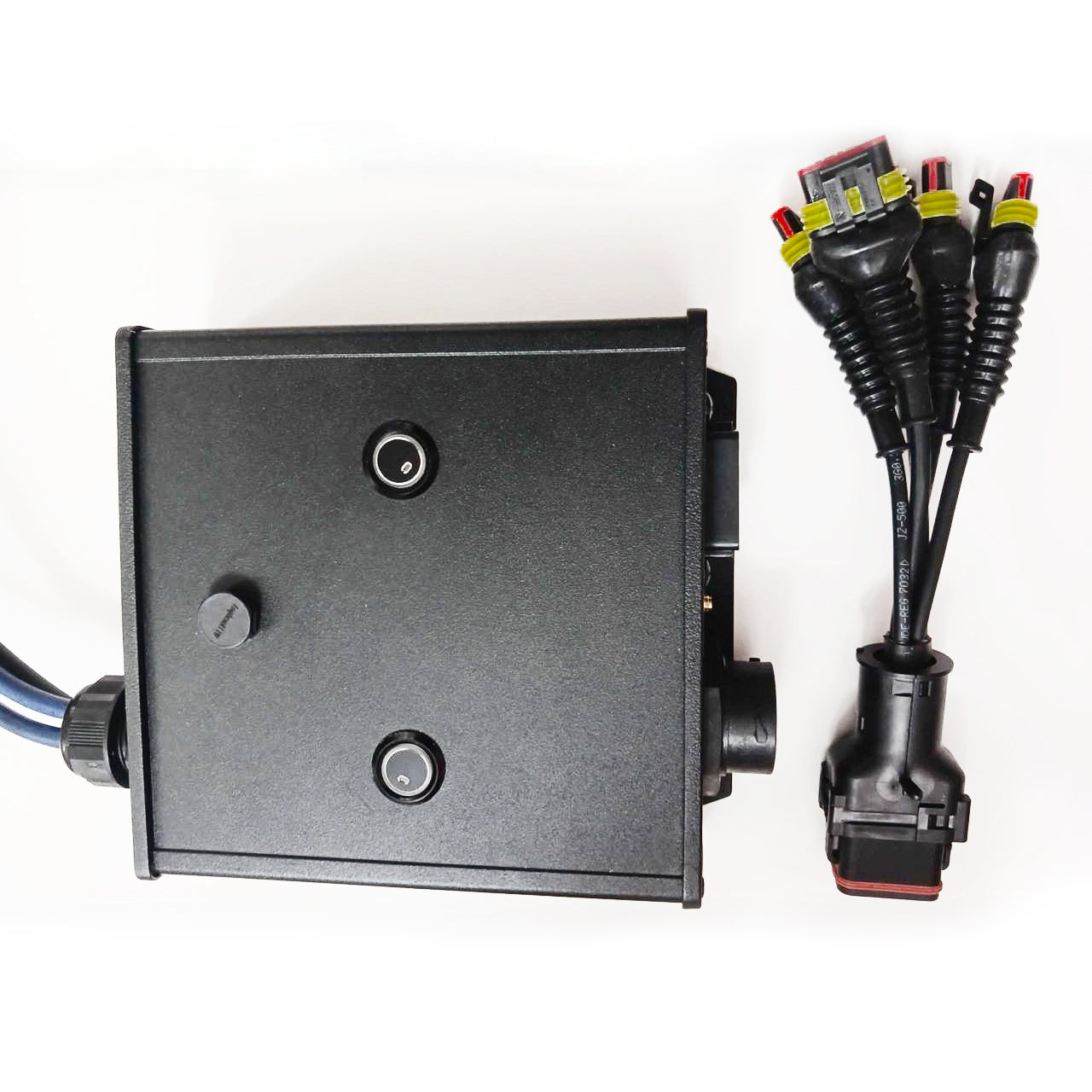

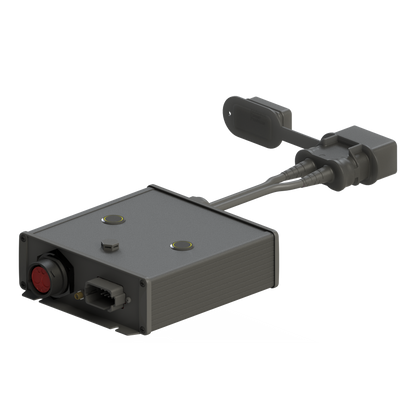

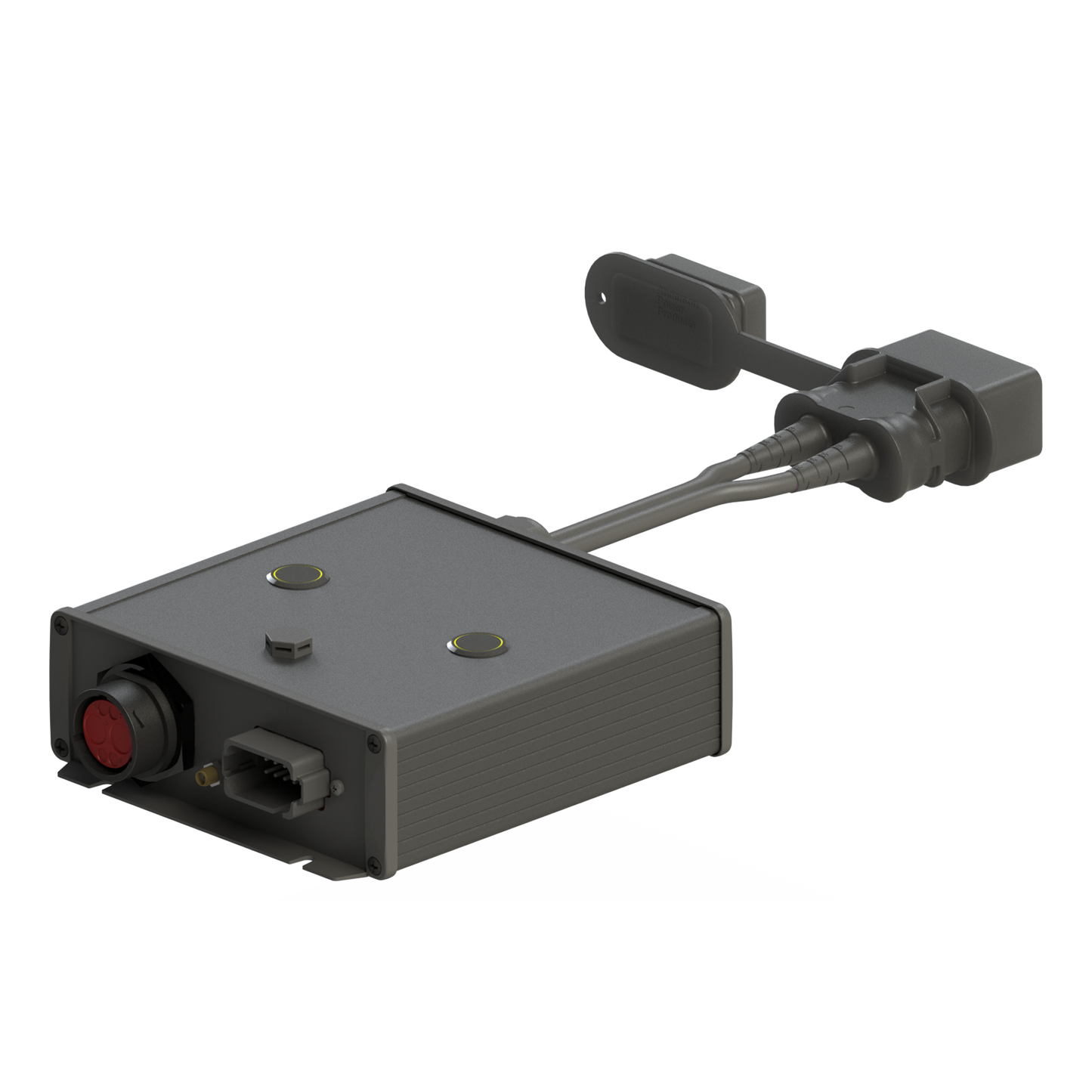

Universal control unit for seeders with seeding rate and application control

A compact and powerful controller for seed drills, strip-till equipment, and pneumatic seeders.

Designed for precise seeding rate and fertilizer application, it controls up to 2 electric motors (2×13 A each) or 1 heavy-duty motor (up to 50 A) / pump for liquid fertilizer, providing reliable and flexible performance in the field.

The unit supports up to 2 products and offers 8 sensor inputs for shaft speed, fan tachometer, hopper level, work position, and more. With an output capacity of 60 A, plus a dedicated input for sequential connection of seed sensors, it is both universal and future-proof.

Built with rugged IP67/IP68 protection, this controller is engineered for durability in harsh agricultural conditions.

Key Features:

• Control of up to 2 electric motors (2×13 A) or 1 heavy-duty motor / liquid fertilizer pump (up to 50 A)
• Supports up to 2 products
• 8 sensor inputs for speed, fan, hopper, and position monitoring
• Output capacity up to 60 A
• Sequential input for seed sensor chains
• IP67/IP68 protection for maximum durability

Applications:

• Retrofit upgrade for mechanical and pneumatic seed drills
• OEM integration into new seeders and strip-till systems needing precision control
